32kWh Fogstar Energy Battery – Scalable, High-Performance Energy Storage
Ideal for off-grid living, backup power, renewable energy systems and industrial energy management, this battery ensures reliable and efficient energy storage for various residential, commercial, and industrial needs.
Equipped with a 300A Seplos Battery Management System (BMS) and inbuilt 2A JK Active Balancer, the Fogstar Energy 32kWh Battery ensures optimised cell balancing, enhanced safety, and extended battery life.
Key Features:
Advanced Battery Management System
Features a 300A Seplos BMS with a 2A JK Active Balancer, ensuring optimal cell balancing and extended battery lifespan.
Seamless Integration
Compatible with popular inverter protocols such as Victron, Pylontech, Growatt, Sofar, Solis, and Goodwe.
Scalability
Expandable up to 16 units for larger energy storage needs.
User-Friendly Interface

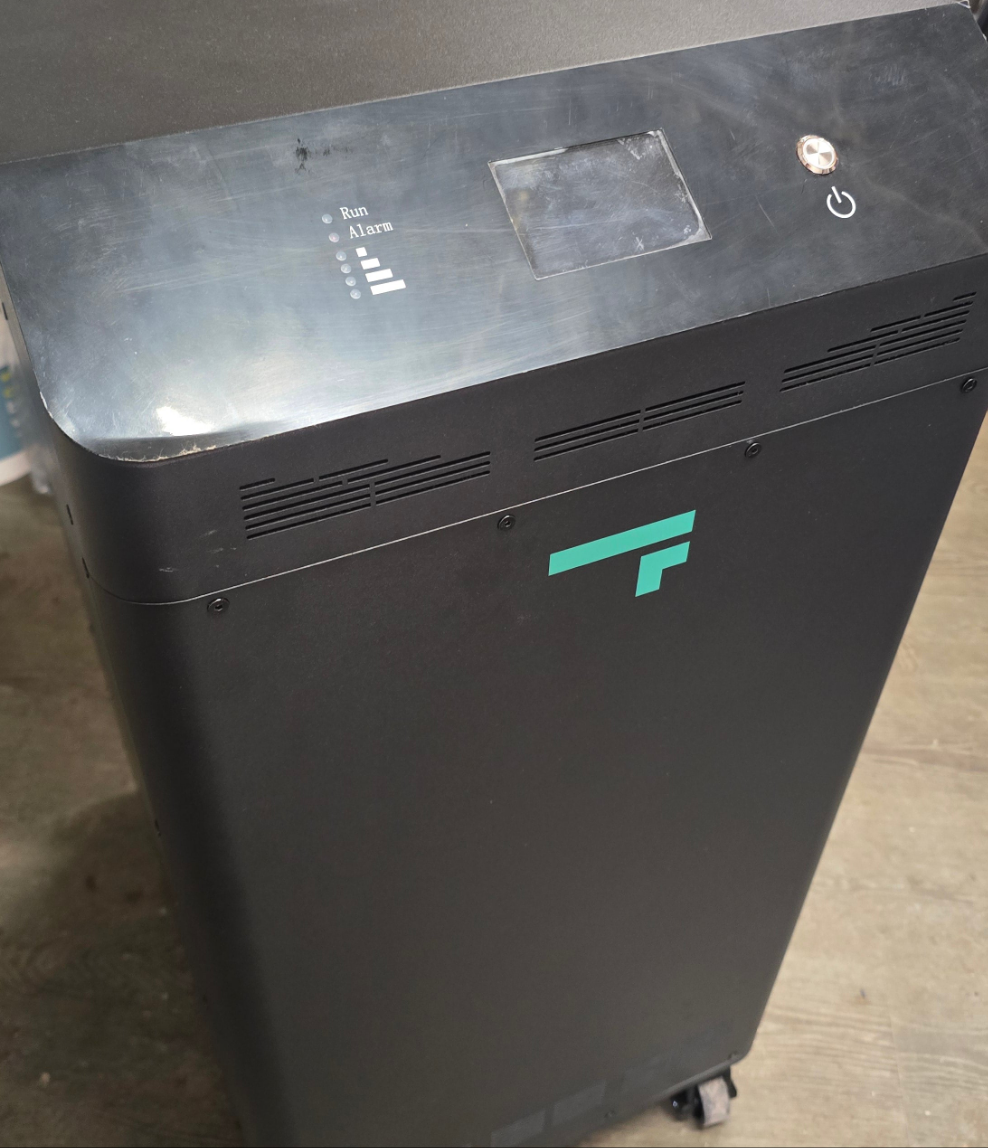

Built-in LCD touchscreen for real-time monitoring and system management.
Reliable Safety Features
Equipped with a 375A breaker and a dedicated On/Off switch for secure operation.
Durable & Versatile Design

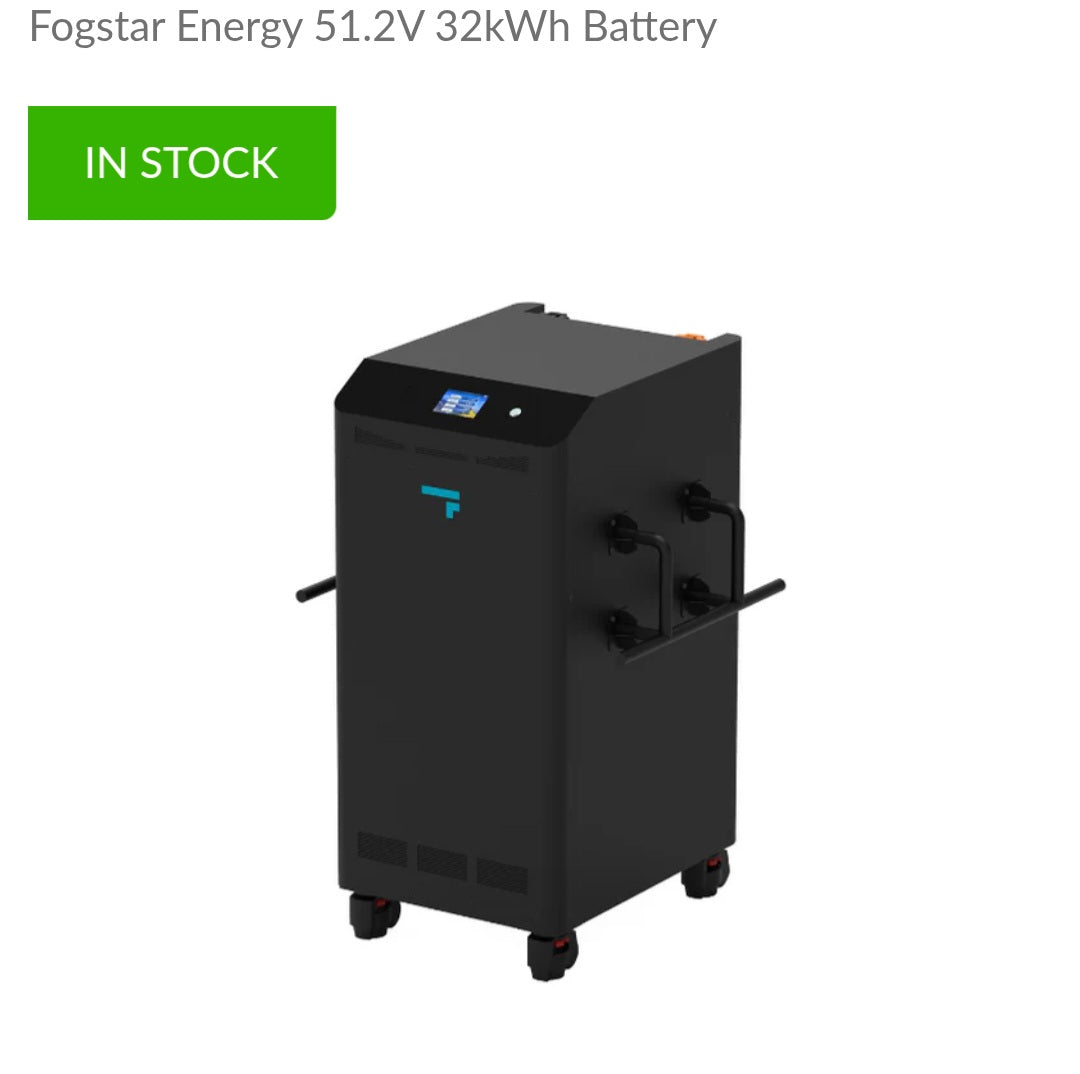

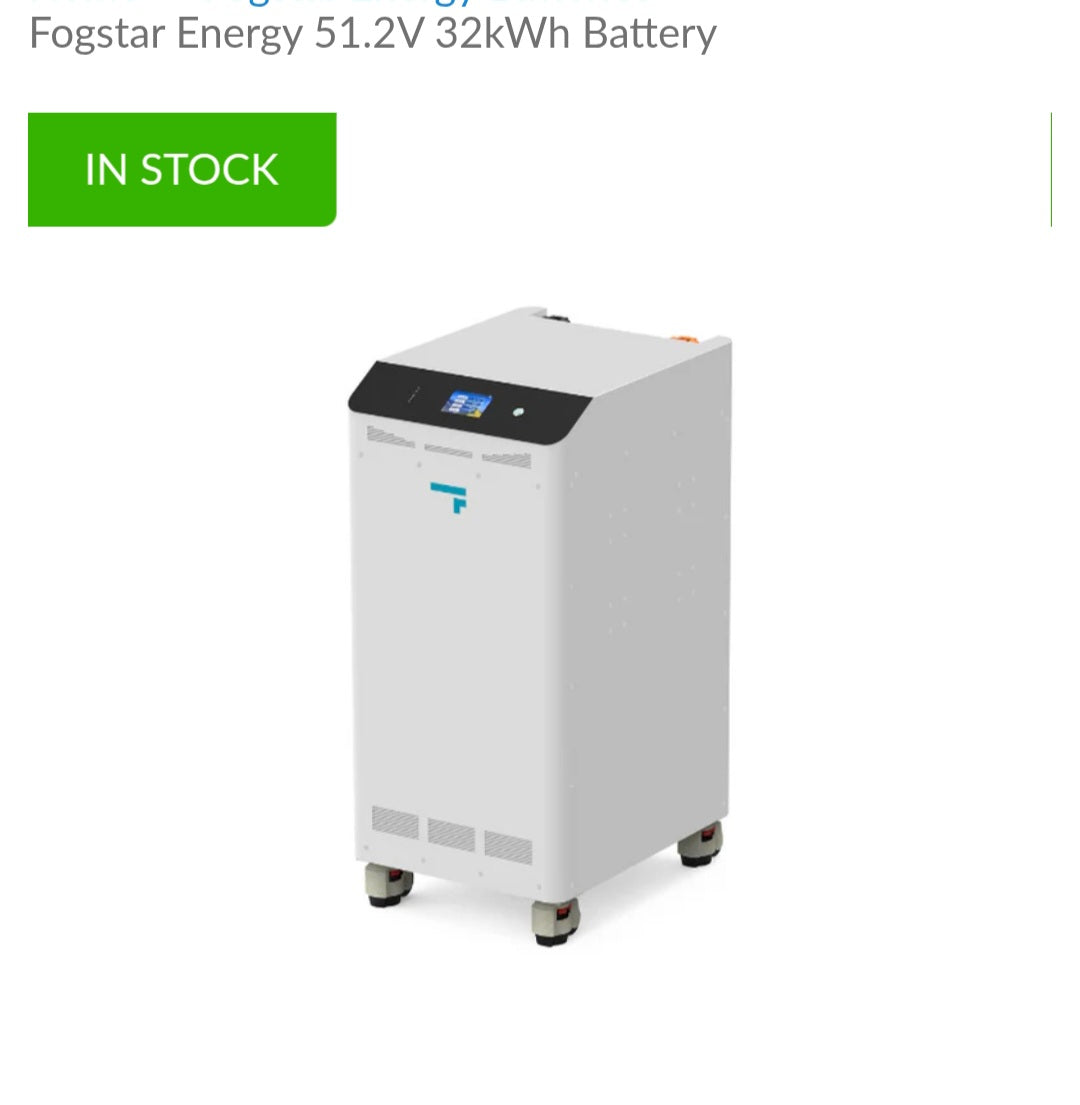

Available in optional black or white casing, featuring a robust lifting system and wheels for easy transportation and installation.
Long-Term Peace of Mind
Backed by a 6 year warranty and 10 years of customer service support.
Low Cost Per kWh
An incredible £121.87 per kWh, delivering cost-effective energy storage without compromising on quality.

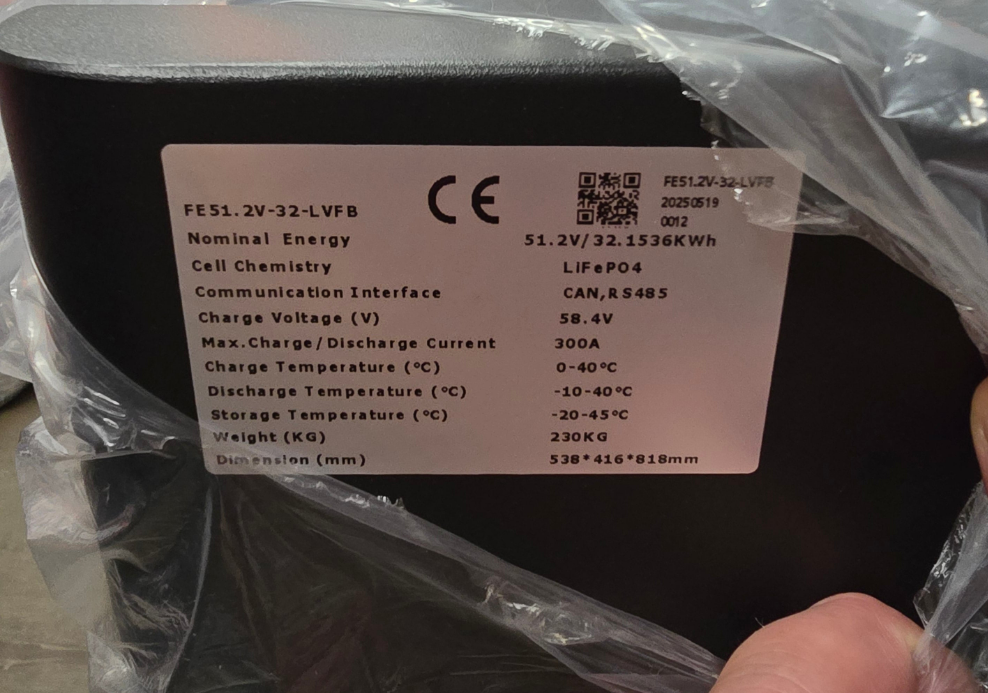

Rated Energy: 32kWh
Nominal Voltage (V): 51.2V
Operating Voltage (V): 42V - 58.2V
Cycle Life: 6000 cycles at 80% DOD (25℃± 1P 2.5V-3.65V)
Cell Configuration: 16S2P
Working Temperature: 0 - 40°C Charge. -20°C - 40°C Discharge.
Maximum Discharge Current: 300A
Capacity: 628Ah
Active Balancer: JK 2A
Weight: 233kg

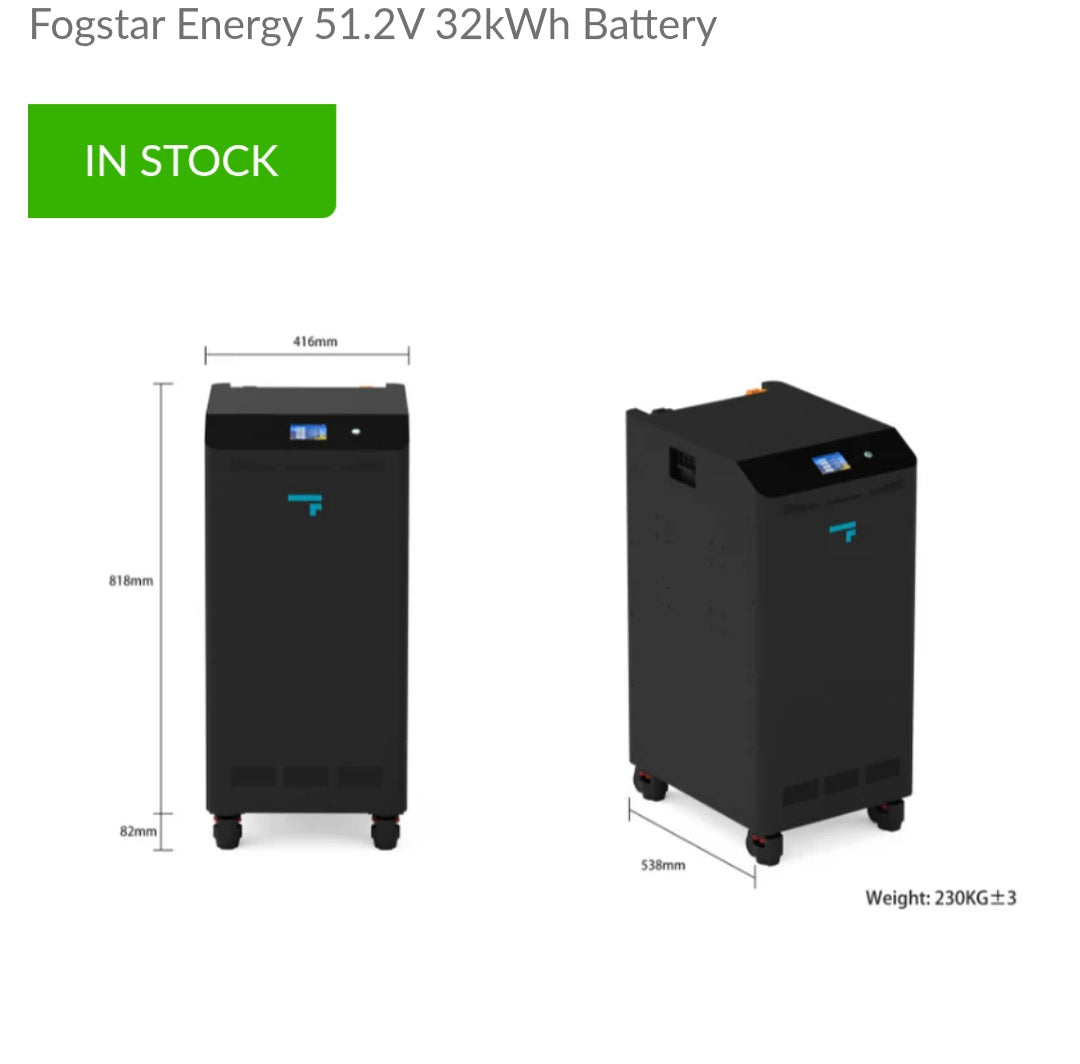

Size: 416mm (W) x 538mm (L) x 900mm (H) - with wheels
Nominal Voltage: 51.2V
Pre-loaded Inverter Protocols: Victron, Sofar, Pylontech, Growatt, Solis, Goodwe.
Delivery from 1 upto 8 weeks depending on stock at fogstar comes on a pallet/ big wood box
